1. Main parameters of lead frame and terminal connector
electroplating machine
| No | Item | Specification |
| 1 | material | lead frame or terminal connector |
| 2 | coating type | copper,nickel,silver,gold,tin,select plating type according to product requirements |
| 3 | coating thickness | according to product requirements |
| 4 | product lines | 1,2,4 or 8 lines |
| 5 | speed | 5~30m/min |
2. Technological process of production
pay off→ ultrasonic degreasing→ water rinsing →cathode degreasing →
water rinsing → anode degreasing → water rinsing →pickling→ water
rinsing → copper plating or nickel plating(selective) → recovery →
water rinsing → pre-silver plating or anti-replacement → local
silver plating or gold plating(selective)→ recovery → water rinsing
→ silver withdrawal (selective)→ water rinsing → tin
plating(selective) → recovery → water rinsing →protection → water
rinsing → hot water rinsing → drying →CCD→ take up
3. Main process introduction
Cathode degreasing: remove the oil on the surface of product to ensure the binding
force of the coating .
Anode degreasing: same as the cathode degreasing.
Pickling: remove the oxide from the surface of the product.
Water rinsing: clean the product thoroughly after the tank to avoid mutual
contamination of the tank.
Copper plating or nickel plating: as a pre-coating, to ensure the subsequent coating and base
binding force.
Silver plating: partial silver plating of functional areas.
Gold plating: partial gold plating of functional areas.
Tin plating: partial tin plating of functional areas.
Protection: a protective film is formed on the surface of the product to
prevent oxidation and discoloration of the coating during transit
and storage.
CCD: detect whether there are defects in the coating of the functional
area .
4. Photos

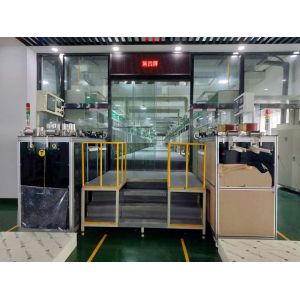

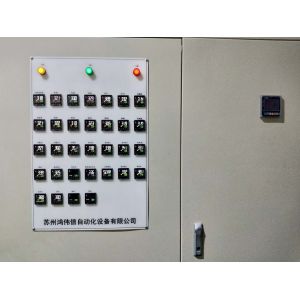

The appearance of the electroplating machine
Pay off
Buffer
Tin electroplating
CCD
5.Product application
(1)LED lighting and display
(2)integrated circuit component
(3)chip carrier of integrated circuit
6.Packaging & Shipping
We can pack it by pallet, or according to the customers' specific
requirements.
