2RB Industrial Fan Side Channel Blower High Pressure Air Ring Blower China Factory Air Pump
♦Product Description:
*Operating principle:
The ompellers in the RB series machines are mounted directly on the motor shaft for noncontact compression entirely without friction. Max operational reliability, even at high differential pressure is ensured by the arrangement of the bearings outside the compression chamber.
*Selection and ordering data for Side channel blowers in vaccum and pressure operation:

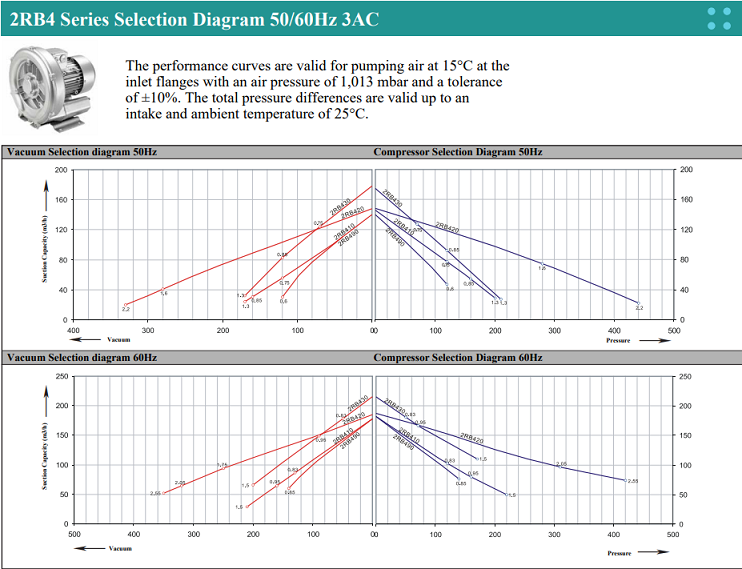

*2RB4 Series Selection diagram 50/60Hz 3AC:
*Dimension Drawings:
♦Technical parameter:
| |
|
|
Rated |
|
Rated |
Rated |
Rated |
Rated |
Sound pressure level |
Weight |
| Model |
|
Frequency |
Output |
Voltage |
current |
Max airflow |
Max vacuum |
Max pressure |
| |
|
Hz |
Kw |
V |
A |
m3/h |
mbar |
mbar |
dB(A) |
Kg |
| ·2RB 410 H16 |
Single |
50 |
0.85 |
200-240Δ 345-415Y |
4.2Δ/2.4Y |
145 |
-160 |
160 |
63 |
16 |
| 60 |
0.95 |
220-275Δ 380-480Y |
4.0Δ/2.3Y |
175 |
-160 |
160 |
64 |
| ·2RB 410 H26 |
Single |
50 |
1.3 |
200-240Δ 345-415Y |
6.6Δ/3.8Y |
145 |
-170 |
200 |
63 |
17 |
| 60 |
1.5 |
220-275Δ 380-480Y |
6.9Δ/4.0Y |
175 |
-210 |
220 |
64 |
| ·2RB 430 H06 |
Single |
50 |
0.7 |
200-240Δ 345-415Y |
3.8Δ/2.2Y |
180 |
-70 |
70 |
64 |
14 |
| 60 |
0.83 |
220-275Δ 380-480Y |
3.8Δ/2.2Y |
210 |
-50 |
50 |
65 |
| ·2RB 430 H16 |
Single |
50 |
0.85 |
200-240Δ 345-415Y |
4.2Δ/2.4Y |
180 |
-120 |
120 |
64 |
17 |
| 60 |
0.95 |
220-275Δ 380-480Y |
4.0Δ/2.3Y |
210 |
-90 |
70 |
65 |
| ·2RB 430 H26 |
Single |
50 |
1.3 |
200-240Δ 345-415Y |
6.6Δ/3.8Y |
180 |
-170 |
220 |
64 |
18 |
| 60 |
1.5 |
220-275Δ 380-480Y |
6.9Δ/4.0Y |
210 |
-200 |
160 |
65 |
| ·2RB 420 H36 |
Double |
50 |
1.6 |
200-240Δ 345-415Y |
7.5Δ/4.3Y |
150 |
-280 |
280 |
66 |
25 |
| 60 |
2.05 |
220-275Δ 380-480Y |
7.6Δ/4.4Y |
180 |
-320 |
310 |
69 |
| ·2RB 420 H46 |
Double |
50 |
2.2 |
200-240Δ 345-415Y |
9.7Δ/5.6Y |
150 |
-330 |
440 |
66 |
27 |
| 60 |
2.55 |
220-275Δ 380-480Y |
10Δ/5.8Y |
180 |
-350 |
420 |
69
|
♦Applications:
1. Drying out buildings - Ventilating/drying out buildings after flood
2. Dental vacuum
3. Filling Bags and bottles
4. Filling Silos
5. Fishpond/breeding pond ventilation - Enriching water with oxygen
6. Food processing - Degasification
7. Gas analysis
8.Industrial vacuum cleaners, central extraction systems
9. Lifting and holding parts using vacuum suction
10. Laser printers - Powder dusting and extraction
11. Letter sorting, enveloping
12. Packaging Machines
13. Paper Industry - Sheet separation,turning, transport, fixation and drying
14. Pneumatic Conveying
15. Soil Treatment - Extracting ground level air
16. Swimming pool technology/spas - Blowing air into water tanks
17. Textile machines - Extracting waste thread and fluff
18. Thermoforming
19.Ventilation of sewage treatment plants - Enriching water with oxygen
*Why choose us:
1.Founded in 2004
2.Mainly engaged in air fluid equipment (compression, vacuum)
3.Three plants (covering the total floor area of more than 108,000m2) in Zhejiang,China.
4.Strong R&D technologies and advanced processing equipment and more than 300 pieces of production equipment of various types, including more than 10 die-casting machines, more than 80 pieces of processing equipment imported from Germany and Japan, as well as more than 70 precision inspection instruments, inspection equipment and testing equipment of various types.
5.Approved CE.
6.Mainly customer is from Germany, UK,Serbia, Tunisia, Sweden, Italy,etc.
Company Profile
Our Customer
Exhibition
Our team
Certificate
Our Logistics
Why choose us
Sticking to the principle of quality for survival and reputatiton for development, our company continuously develops new products and improves their quality.
Hangzhou Suntech Machinery Co., LTD is sincere in cooperation with people from all walks of life to create jointly great success!
