    Rack Plating Machine Rack Plating Line

    Ask Lasest Price
    Brand Name : SUNTECH
    Model Number : GDX
    Price : USD 40000~800000/SET
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per 4 months
    Delivery Time : 3~4 months
    • Product Details
    • Company Profile

    Rack Plating Machine Rack Plating Line

    Rack Electroplating Rack Plating Galvanizing Line

    1. Main parameters of electroplating production line


    NoItemSpecification
    1materialcarbon steel
    2product size rangeaccording to customer
    3coating typezinc
    4coating thickness1~30μm

    2. Technological process of rack electroplating

    racking→alkaline degreasing→electrolytic degreasing→water rinsing→pickling→water rinsing→zinc plating→water rinsing→bright dipping→water rinsing→passivation→water rinsing→hot water rinsing→drying→put down


    3. Main process introduction


    Alkaline degreasing:remove the oil on the surface of products
    Electrolytic degreasing: further remove the oil on the surface of products to ensure the binding force of the coating .
    Pickling: remove the oxide from the surface of products and activate the product surface .
    Water rinsing: clean the product thoroughly after the tank to avoid mutual contamination of the tank.
    Zinc plating: the product is coated with a uniform coating.
    Bright dipping:Remove the alkaline film on the surface of zinc layer and increase the brightness of zinc layer.
    Passivation:increase corrosion resistance of zinc layer to prevent white rust during transportation.
    Hot water rinsing:clean the surface of product and improve the temperature of the proucut itself

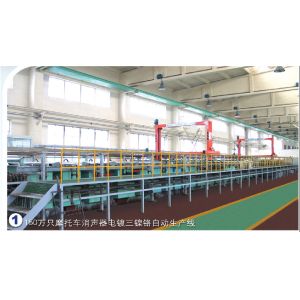

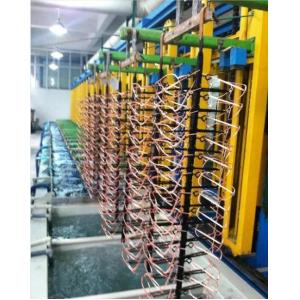

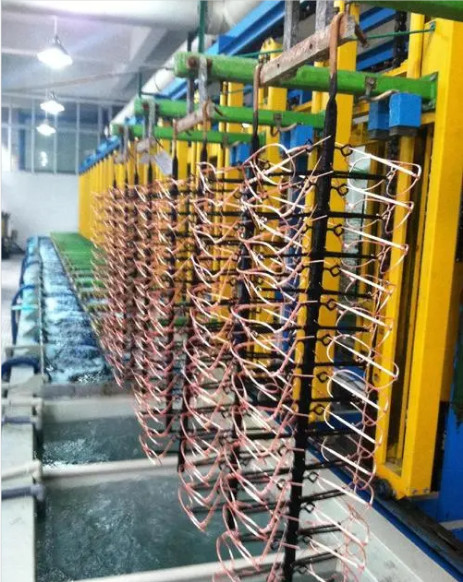

    4.Photos


    5.Solution preparation

    Zinc plating solution:

    ZnCl2 30-70 g/L
    KCl 200-260 g/L
    H3BO3 25-35 g/L
    Wake up agent 16-25 ml/L
    Brightening agent 0-1 m1/L


    6.Common faults and solutions

    Coating blooming (fog)
    Possible causes Solutions
    1. Pre treatment with oil 1. Strengthen oil removal
    2. Poor post-treatment processing 2. Improvement
    3. Excessive organic and metal impurities 3. Major treatment
    4. Excessive brightening agent 4. Electrolysis at low pH
    5. Less boric acid 5. Supplement
    6. Aging of the dipping liquid 6. Replacement
    7. insufficient anode area 7. Adding multiple anodes


    7.Packaging & Shipping

    We can pack it by pallet, or according to the customers' specific requirements.

    Port: Shanghai/Ningbo


    8. Our Services
    In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
    (1) Correct operating mode
    (2) Correct maintenance way
    (3) Correct technological process control
    (4) Remove simple problem
    All the electroplating machine of our company have already been widely used in electroplating area.


    Any doubt please contact us.
