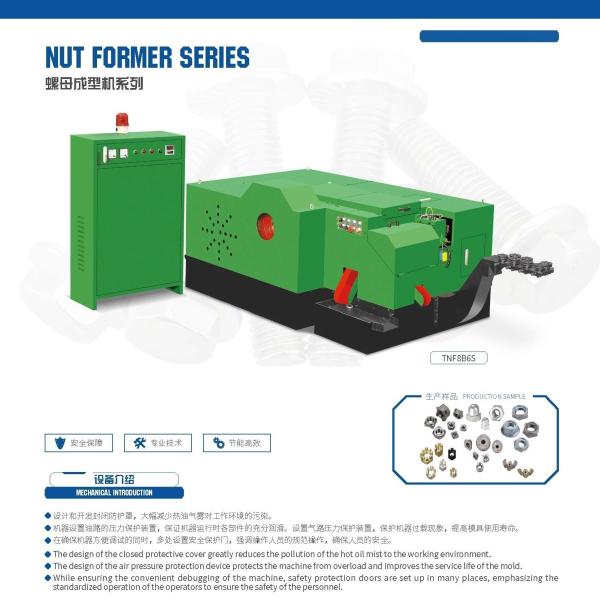

Brad Nail Nut Forming Machine Nut Making Machine Nut Cold Heading
Machine Nail Making Machine
Products Description
Our company has advanced technology and rich experience, by widely
absorbing the advanced technologies of domesctic and overseas,
thoroughly taking the processing needs of modern screw industry
into consideration, and keeping revising and improving.
Thanks to our adopting the latest processing technology, precise
assembly and debugging technology, and strict quality test, our
products are of good quality and stable performance.
*Design and develop closed protective cover to reduce the pollution
of hot oil mist to the working enviroment.
*The machine sets the pressure protection device of the oil corcuit
to ensure that the parts of the machine are fully lubricated. Setup
the gas path pressure protection device to protect the machine
overload phenomenon and improve the service life of the die.
*While ensuring that the machine is easy to debug, a number of
security doors are set up, emphasizing the standard operation of
operators to ensure the safety of personnel.
Technical parameter of Automatic Nut Forming Nail Making Cold
Forging Machine:
| Model | ST8B-6S | ST11B-6S | ST14B-6S | ST17B-6S | ST19B-6S |
| Moulds Quantity/No | 6 | 6 | 6 | 6 | 6 |
| Products Outside Diameter/mm | 5-8 | 5.5-12.7 | 10-17 | 14-17 | 14-22 |
| Products Size/mm | M2.5-M5 | M3-M6 | M6-M10 | M6-M10 | M8-M14 |
| Max.Cut-off Diameter/mm | 8 | 11 | 14 | 17 | 19 |
| Max.Cut-off Length/mm | 8 | 15 | 15 | 20 | 17 |
| P.K.O Stroke/ mm | 12 | 15 | 18 | 20 | 25 |
| Die Pitch/mm | 38 | 50 | 60 | 70 | 80 |
| Pressure Force/kg | 30000 | 55000 | 85000 | 120000 | 130000 |
| Stroke/mm | 50 | 58 | 70 | 80 | 100 |
| Capacity/ pcs/min | 180-250 | 150-250 | 100-200 | 80-150 | 80-130 |
| Main Motor Power/kw | 7.5 | 11 | 15 | 22 | 30 |
| Lubricant Motor/kw | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Lubes Comsumption/L | 400 | 600 | 900 | 1000 | 1200 |
| Weight/kg | 3500 | 4500 | 8000 | 10000 | 14000 |
| Volume (L*W*H)/m | 1.85×1.6×1.05 | 2.4×1.6×11 | 3.1×2.1×1.4 | 3.2×2.2×1.4 | 3.7×2.2×1.6 |
Our Main Products:
*Multi-station cold forging machine
*Nut forming machine
*Open/close mould cold heading machine
*High speed cold heading machine
*High speed threading machine
*Hexagon head trimming machine
*Semi-tubular rivets cold heading machine
*Full-tubular rivets cold heading machine
*Thread rolling machine
Sticking to the principle of quality for survival and reputatiton
for development, our company continuously develops new products and
improves their quality.
Hangzhou Suntech Machinery Co., LTD is sincere in cooperation with
people from all walks of life to create jointly great success!
