185mm2 Water Induction Tempering Machine Suspension Spring Wire

Ask Lasest Price
Brand Name :	SUNTECH
Model Number :	9-16mm,2-6mm
Certification :	CCC, ISO
Price :	100000
Payment Terms :	L/C, D/P, T/T
Supply Ability :	80SETS/YEAR
Delivery Time :	90 DAYS

Add to Cart

Product Details
Company Profile

185mm2 Water Induction Tempering Machine Suspension Spring Wire

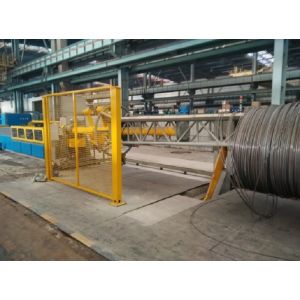

Suspension spring wire water induction tempering production line

I. Whole Work Flow:

Pay off → Pinch rolls set No. 1 → HV-Straightener → Pinch rolls set No. 2 → Cleaning unit → Induction Quenching No.1 → Induction Quenching No.2 → Induction Quenching No.3 →Heat holding → Jet-cooling for Quenching → Induction Tempering →Heat holding → Jet-cooling for Tempering → Flaw detector → Pinch rolls set No. 3 → Oiler → Shearing → Wire separating → Wire take-up

II. Main Technical Parameters:

Name	Preheating power supply	Post-heating power supply	Tempering power supply
Heating power specifications	350kW/6kHz	200kW/30kHz	250kW/6kHz
Power supply voltage	Three-phase 400V/ 60Hz	Three-phase 400V/ 60Hz	Three-phase 400V/ 60Hz
rated incoming current	570A	370A	370A
incoming copper cable	240mm2	185mm2	185mm2
Rated DC voltage	500V	450V	500V
Rated DC current	700A	450A	500A
Rated DC power	350kW	200kW	250kW
frequency range	4-6kHz	20-30kHz	4-6kHz
Resonance forms	parallel resonance	parallel resonance	parallel resonance
The inverter state	<10°capacitive	<15°capacitive	<15°capacitive
The max tank circuit voltage	570V	570V	570V
overall efficiency	≥80%	≥70%	≥80%

III. Fetures:

The all-solid-state all-digital IGBT induction heating equipment is mainly used for heating galvanized steel wire. After induction heating, it reaches the heating temperature requirement. The complete induction heating equipment includes induction heating power supply (including resonant capacitor, feeding copper bar, pouring inductor, frequency conversion drive, rectifier bridge, inverter bridge and inverter drive part, whole machine). A set of circulating soft water cooling system, heating console, trolly moving system, thermometer, etc.

The efficiency of the power supply is high and the energy saving effect is obvious.

The components are versatile and the whole machine is easy to maintain.

The bridge structure has good flow uniformity.

Full digital circuit, fixed angle control.
