Product Parameters

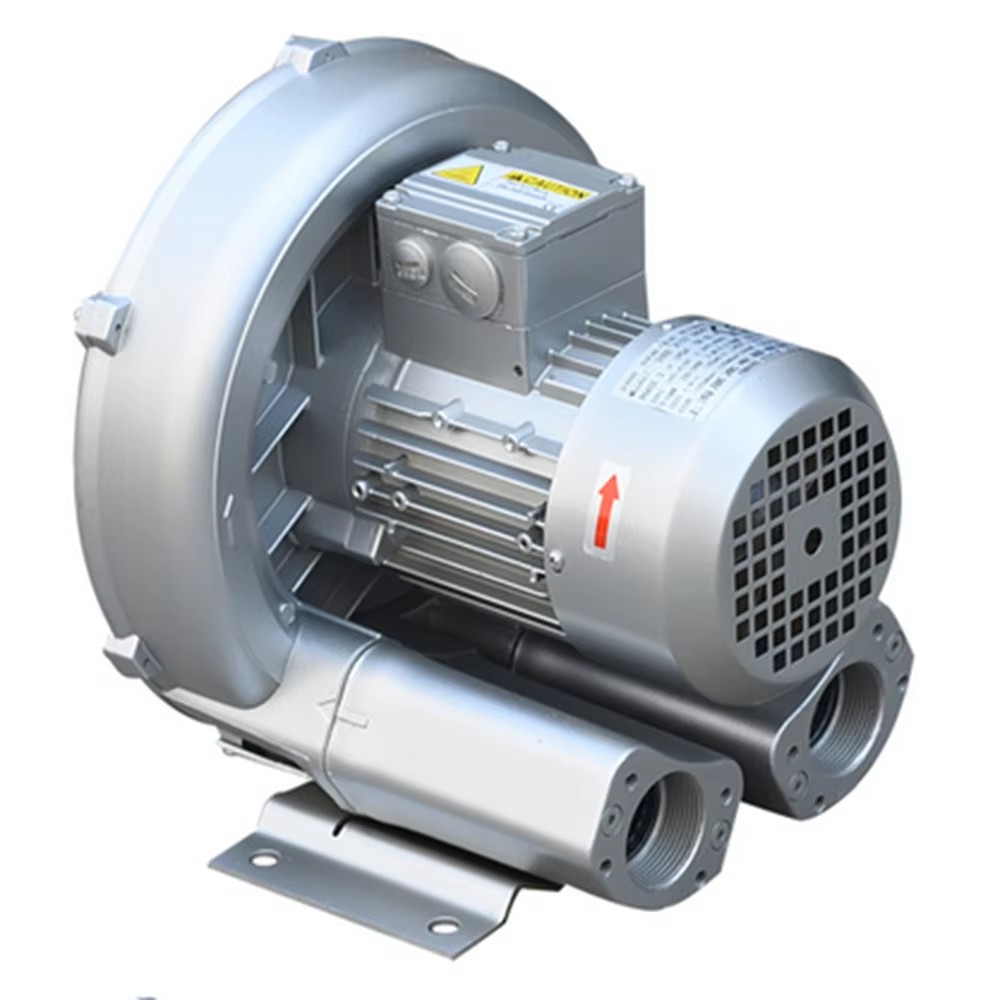

| 2RB 110 A11 Single Stage 1AC High Pressure Side Channel Blower |
| 50HZ | 60HZ |
| Power | 0.25KW | 0.28KW |
| Rated Voltage | 200-240V | 220-240V |
| Rated Current | 1.7A | 1.9A |
| Max Airflow | 70 m3/h | 85 m3/h |
| Max Vaccum | -110 mbar | -130 mbar |
| Max Pressure | 110 mbar | 140 mbar |
| Sound Level | 48 dB(A) | 50 dB(A) |
| Net Weight | 8 KG | 8 KG |
| IP Grade | IP54 | IP54 |
| Insulation Grade | F | F |
Product Advantages
Almost completely maintenance free
- Have a wide range of performance
- Robust yet light weight
- Reliability- Built to last
50/60HZ voltage range motors
- Low level of noise
- Easy installation
- No vibration, complete dynamic stability
Pulsation free discharge
- Simple and minimal maintenance
- Higher Pressure Ratios
- Cooler Running Bearings
Longer grease life
- 100% Oil Free Air
- Suitable to environment protection
- Small dimensions
 |  |  |
| 100% copper wire winding | NSK bearing | Statically and dynamically balanced |
Accessories
 |  |
| Safety Valve(GV-01/02) | Safety Valve(RV-01/02) |
 |  |  |

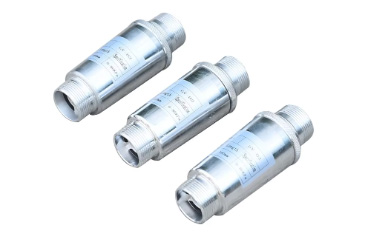

Filter(2GLQ1800/ 1801/1802/1803/1804/1805) | Filter(MF-08/10/12/16/20/24/32) | Silencer |
Our Certificate

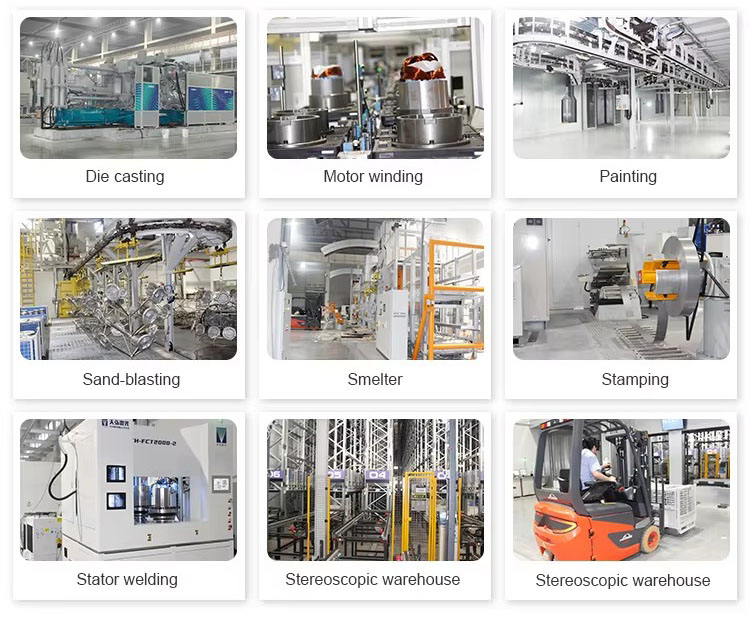

Our Workshop

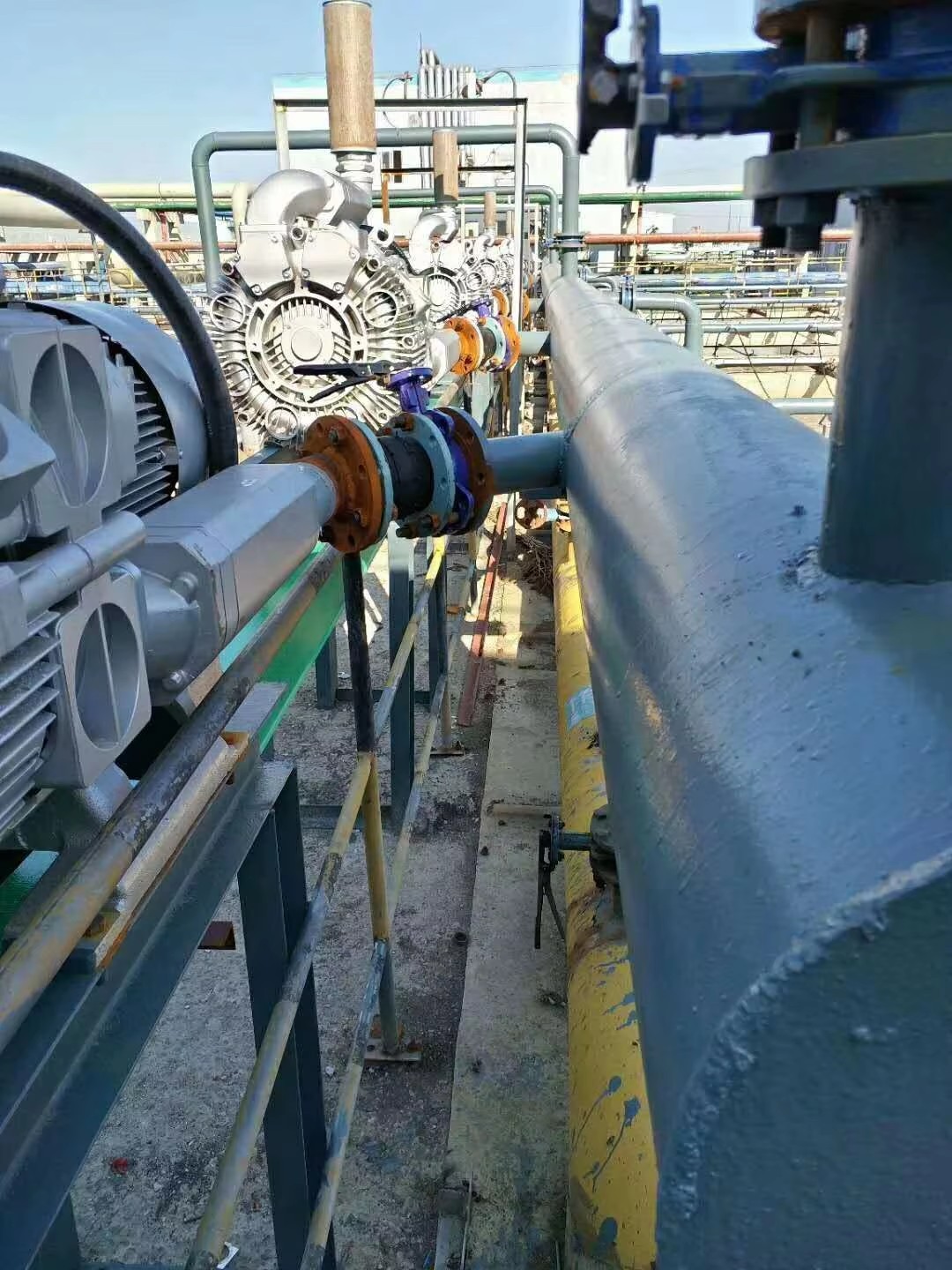

Successful Case
Fish Farming Waste Water Treatment
Packaging
 | Normal Packaging
A blower is placed on a pallet and packed in hard carton. The normal package is 4/6 sets one pallet.
|
Payment & Delivery
Our Service
 |  |
Pre-Sales Service | After-Sales Service |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory. | * Training how to install and use the machine. * Engineers available to service machinery overseas. |
FAQ
Q1: How to select a correct model of ring blower?
A1: Please check and advise the max airflow and max pressure of
ring blower you need.
Q2: What is the material of your machine , is oil free?
A2: Our blower is aluminum alloy, motor is 100% copper coil . Yes,
we are oil free.
Q3: Is it OK to print my logo on pumps product?
A3:Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q4: How to guarantee the quality and after sales service of your
goods?
A4: 1).Strict detection during production.
2).Strict inspection on each product before shipment and intact
product packaging are insured.
3).Follow up and adopt customers feedbacks in a timely manner after
sales.
Q5: How to operate your machine?
A5: Connect with wire, and turn on the power, so you can use it
directly, about the wiring method, we will tell you how to do
according to your voltage, so at first , you need to tell us your
voltage and phase,its important.
